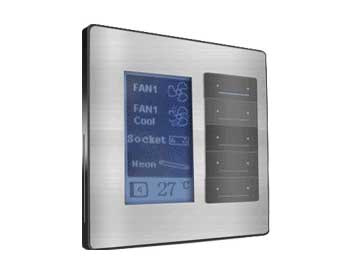

An Extremely Easy to use full life-style elegant combined panel that solve the problem of cluttering and wall agony, the problem of knowing buttons functionality, and the problem of matching the decoration finishes and materials. It is an Award Winner.

Comes with Built-in Temperature Sensor, HVAC Control, Music, TV/DVD, Lighting, Shades, and Services

Features

• LCD Back Lighting with Time Out Flexibility
• Buttons LED Backlighting
• Single Click, Double Click, Continuous Press with Different Functions for each Button.
• Each Button: Right and Left different or similar operation option flexibility
• Total of 5 Pages each of 4 Buttons and 2 Momentary switches = 40 Gang in one 3X3 in Switch..
• Graphical and Text Display for easy Usage of New users
• Support all Languages in the world.
• Built-in Temperature Sensor for Room Real Time Temp.
• Ability to Calibrate Temp+-
• Infra Red Receiver
• Flexible Finishes available as Stainless, Golden, Glass, Wood, marble ++
• LCD Size 5.00 cm X 2.75 cm
• Screw Less Mounting Using Advanced Magnet Attachment Idea
• Changeable Button Colors
• Real Time Clock and room Temp. Displaying

Power Input: 8-32V DC; By BUS
Power Consumption: 25mA/DC24V
Ambient Conditions:
Working Temperature: 0?- 45?
Working Relative Humidity: 20% - 90%
Storage Temperature: -40?- +55?
Storage  Relative Humidity: 10% -  93%
Pages: 6 Pages Dynamic +8 for slave AC
Languages: Multi-Lingual
LCD Brightness: Controlled Digitally     10% - 100% + Back     Light Off after Time     Out, Wake Up ++
Interface: LCD display, 5 Double push buttons
Installation: Wall mounting into     European British, *US    Standard Back Box
Mounting: 2 Strong Magnets for     Easy and Elegant     Screw Less Installation and Programming
Graphics: Bmp and Text
Communication: Smart-BUS + IR
Addressing: MAC & Digital

Dimensions

Front: 8.5cmX8.5cm
Depth: 3.5 cm
