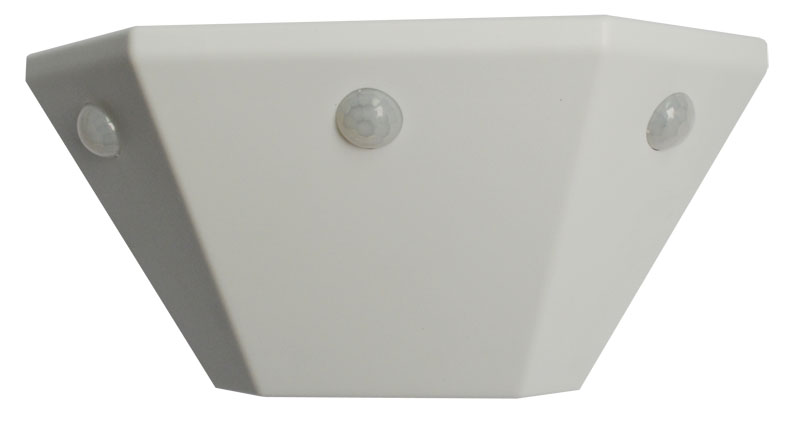

Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL
GTIN (UPC-EAN): 0610696255044




SmartBUS Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL - GTIN (UPC-EAN): 0610696255044

Description

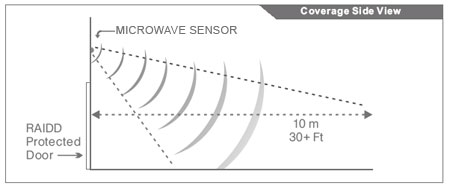

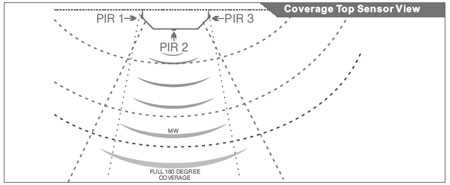

Microwave Sensor motion sensing utilizes Dual Sensor Technology: 1 MicroWave Detector (Forward wide field view) and 3 Passive Infrared (PIR)
Sensors that overlap their detection fields to create a 180 degree "semicircle" around the Microwave Sensor. This dual and overlapping system provides full and "Instant On" activation of the RAIDD Door Defense System at the 1st sign of any intruder within the protected sensor zone.

Control Compatibility:

Security
Safety
Maintenance
Health
Automation

Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL

Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL

Microwave PIR Sensor (G4) - (2in1) - SB-MW2in1-WL

WHY G4 (GENERATION-4) IS BETTER? 9IN1 SENSOR, 6IN1, 5IN1



9in1 Sensor, 6in1 Sensor
(Features compared)

Old Smart-BUS

New S-BUS G4

Easy To Open and close without stocking

Difficult

Easy

Easy Twist and Screw Installation Simplicity

Not Available

Available

Ability to Snap Connect/Disconnect Cables

Not Possible

Snap In Connector

Electronic Board can Be easily removed and protected till Installation Time, while base and connectors remain

Not Possible

Possible

Upgrading the Device Made Easy

Difficult

By Mini USB

Temperature Sensor Built in and Can Link to HVAC2

Not Available

Available

Unified Milky White Color that dissolve into ceiling without the Brown IR Emitter ring cover 9Avoided)

Not Available

Available

Advanced cable Run Design to accommodate Finished Installation Needs at Concreted Ceiling Homes

Not Available

Available

Easy Backup and Restore using Configuration SW

Not Available

Available

Work on Both BUS and Cloud Technology

Not Possible

Possible

Advanced Spacing and Isolation to avoid Electromagnetic Field false Signaling

Not Available

Available

well designed Air cooling Vents at base of Module

Standard

Advanced, Double efficiency

Genuine Patent and Brand Embedded into all Parts and Plastics

Not Available

Available

Genuine Product Barcode GTIN, and Holographic Label Distinguisher

Not Available

Available

All Other Standard Smart-BUS Advanced Automation Features

Included

Included



TECHNICAL DATA:

Q. What is the Range of Motion detection and IR range for every sensor?
A. a motion Detection range of 10 meters diameter (5 in every direction from sensor center) if installed at height of 3m. and IR transmission Range of 12 meter diameter (6 in every direction).

Q. How many programmable logic lines available in every multi-function sensor?
A. there are 32 Logic lines and 250 programmable flags. (Each sensor is considered a complete Zone Automation control commander; it would have been complete system if it has built in Time clock with battery).

Q. which sensors have built-in Temperature couple and what is the use of this?
A. both 9in1 and 6in1 sensors have built-in Thermal couple for temperature reading. It can be used to Pair with HVAC2, or to act as temperature reading source for SW, Touch screen, or DDP. It can also be used to average the temperature of several reading devices or points in the same space. Best application for it is the use in one zone where only one HVAC supply multi areas, in such case if temperature threshold is reached in the slave zone then AC shall trigger regardless if Main DDP desired or current temperature settings are differently assigned. Priority will be given to the critical zone as per logic command.

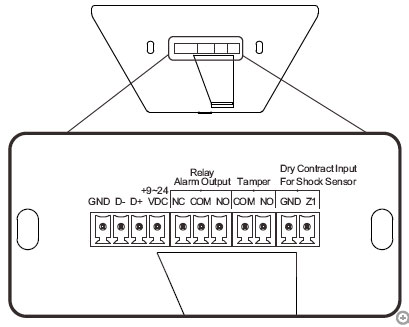

Q. How many Dry contact inputs the Multi-sensor Have, and can we put more than one door or window magnetic contact on single zone?
A. each Multi-Sensor have 3 addressable zones, Only 2 of which are assigned for dry Inputs. On each addressable dry input, installer can connect on series as many doors or windows needed, but must understand that either one of them is open then, all will be reported unsecure.

Under Construction

Applications

Energy Saving

Design Variants
