Smart-Bus Fan Speed Control Module (G4) - SB-6FAN5S-DN
GTIN (UPC-EAN): 0610696253781




Smart-Bus Fan Speed Control Module (G4) - SB-6FAN5S-DN - GTIN (UPC-EAN): 0610696253781

Description

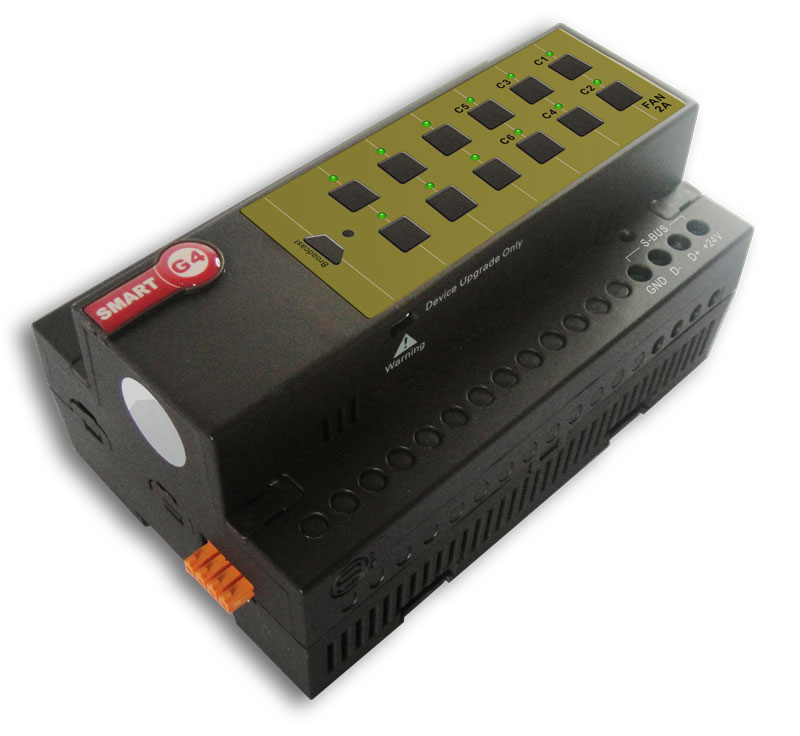

DIN-Rail Mount Fan Speed Controller for Ceiling mounted fan Types. 6ch each is 2A. Each can handle up to 5 Fan Speed status. (Green operated supplied by 24VAC/30mA) Small and elegant with easy labeling space, output status LED indicator, network health, broadcast address button and Momentary channel button. Can be used in any location that require energy saving, intelligent climate control such as apartment, Villa, Offices, Restaurant, Hotels or factories.

**Can be Manually Programmed by any Electrician on site without need for PC.

Load Compatibility

• ceiling fans
• lopper fans
• exhaust fans

Specifications

Supply
80-240V, 50/60Hz Single Phase power consumption: 20-30mA

Outputs
6 x Stepped Speed outputs at 1A each output channel
Maximum Total Load
10A recommended total load

Control IO
3 x Advanced RS485 S-BUS serial port links (both train& screw link types)

Upgrade IO
1 x mini USB port (to connect to special programming board)

Dimensions & Weight

W 91mm x L 145mm x H 75mm
Packed weight 0.7kg

WHY G4 (GENERATION-4) IS BETTER?



Q. How many fans Can connected to the FAN control module And what type?
A. Total of 6 Fans can be connected, each can have up to 5 speed (0=off, 1,2,3, & 4=Max). you can connect any variable electric motor fan like ceiling fan, exhaust fan, or Lopper=Fans.

Q. How many electric phases can the Fan Module Take?
A. only One Phase per one fan module

Q. Can this fan module also be used to control fan speed of HVAC (FCU/AHU etc.?)?
A. No, this fan module cannot be used for this function. HVAC controllers have ready Preset fan speed according to the system manufacturer that should not be altered, thus only use HVAC2 module for this operation. The FAN module is used for ceilig fans Mainly or similar.

Smart-Bus Fan Speed Control Module (G4) - SB-6FAN5S-DN - GTIN (UPC-EAN): 0610696253781


Smart-Bus Fan Speed Control Module (G4) - SB-6FAN5S-DN - GTIN (UPC-EAN): 0610696253781

Download: SB-6FAN5S-DN (Data Sheet)

TECHNICAL DATA:

Supply
80-240V, 50/60Hz Single Phase
power consumption: 20-30mA

Outputs
6 x Stepped Speed outputs at
1A each output channel
Maximum Total Load
10A recommended total load

Control IO
3 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)

Upgrade IO
1 x mini USB port (to connect to
special programming board)

User Controls
• front panel override switches,
Includes ON/OFF/AUTO override
switch for each channel
• LED status indicator/channel
• Diagnostic LED+ BROADCAST

Programming
• Manual Ch. Pairing Programming
Each Channel to a Button
on Wall Panels (e.g. DDP, 6B)
• Advanced Software Configuration
& Programming

Compliance
CE Mark Low Voltage
CE Mark EMC

Internal Protection
• Over Heat Protection
• Over Load Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

Presets
6X preset speed output levels
calibrated for noise reduction

Installation
• 35mm DIN-Rail Mount Ready
• Wall Mount Ready (8P)

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where

Supply Terminals
Line, 3X Neutral. 2 x 2.5mm2
or 1 x 4mm2 max conductor size

Output Terminals
COM. 1X OUT for each channel
1 x 4mm2 max conductor size

Operating Environment
0º to 45ºC ambient temperature
10% to 93% RH

Enclosure & Size
Polycarbonate, DIN-rail (8 Unit)

Dimensions & Weight
W 91mm x L 145mm x H 75mm
Packed weight 0.7kg

Applications

Apartment, Villa, Offices, Restaurant, Hotels or factories.

Design Variants
