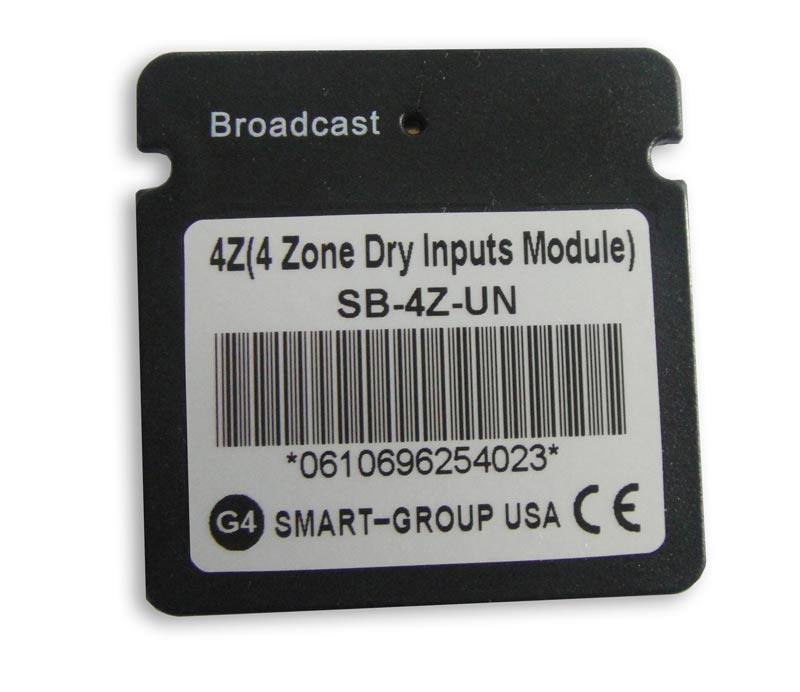

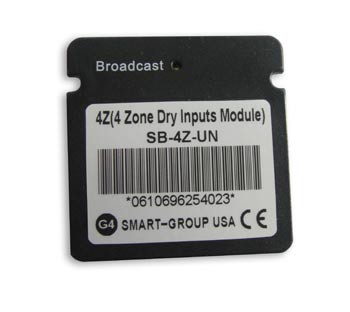

Smart-Bus 4-Zone Dry Input Module (G4) - SB-4Z-UN
GTIN(UPC-EAN): 0610696254023




Smart-Bus 4-Zone Dry Input Module (G4) - SB-4Z-UN - GTIN(UPC-EAN): 0610696254023

Smart-Bus 4-Zone Dry Input Module (G4) - SB-4Z-UN

Description

Bus Enabled, Addressable 4-Zone dry Contact Input Module. used for Automation, to connect to any door window sensor, PIR , Gas leak, Smoke detectors, Water Leak sensors, Pressure Mats, panic...etc. (supports 4 zones Security & Safety). Another application is for converting Classical Manual Switches into BUS Automation use. Built-in intelligence and delay function, 2-Way Switch update status function. Can fit behind switch into wall box.

**Added function: Bigger screw terminals, Broadcast button, and mini USB firmware upgrade port.

Control Compatibility:

• Security
• Safety
• Maintenance
• Health
• Converting normal switches into automated ones

Connection Port:

Smart-Bus 4-Zone Dry Input Module (G4) - SB-4Z-UN - GTIN(UPC-EAN): 0610696254023


WHY G4 (GENERATION-4) IS BETTER? 4Z, AND IR EMITTER (W/CURRENT SENSOR)



4Z/IR Modules (Features compared)

Old Smart-BUS

New S-BUS G4

Upgrading without opening the Device

Not Possible

By Mini USB

Broadcast Button for addressing while Networked

Not Possible

Available

Big Easy Screw Terminals to connect Cables

Too Small

Bigger Size

PCB Electronics Design Complexity

Random

Organized

Updated Channel Operation status on DLP and SW if Manually Changed with 2way switch function

Not Available

Available

Easy Twist to Open Design

Not Possible

Available

Easy Backup and Restore using Configuration SW

Not Available

Available

Work on Both BUS and Cloud Technology

Not Possible

Possible

Genuine Patent and Brand Embedded into all Parts and Plastics

Not Available

Available

Genuine Product Barcode GTIN, and Holographic Label Distinguisher

Not Available

Available

All Other Standard Smart-BUS Advanced Automation Features

Included

Included

Download: SB-4Z-UN  (Data Sheet)

TECHNICAL DATA:

Inputs
4-Dry Inputs (Volt Free)
NO/NC
Internal Assignment enabled
using Software setup

Applications
• Security Applications in connection
to: (vibration, UV, magnetic
contacts, Panic, Pressure
matt, PIR, microwave, Driveway
sensors...etc.)
• Safety Applications in connection
to: (Gas Leak, Smoke,
Pool Guard, Elevator Panic, CO
gas, Bathroom Help..etc.)
• Maintenance and Health Applications
in connection to: (water
Leak detector, water tank low
level alert, Filter clogged sensor...
etc.)
• Converting Manual Wall
Switches into Automation enabled
User Controls
• LED status indicator/channel
• Diagnostic LED+ BROADCAST

Programming
• Advanced Software Configuration
& Programming

Compliance
CE Mark EMC

Control IO
1 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)

Upgrade IO
1 x mini USB port (to connect to
special programming board)

Operation Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where
Power consumption: 12mA

Installation
• universal Mount Ready
Operating Environment
0º to 45ºC ambient temperature
20% to 93% RH

Enclosure material
Polycarbonate

Dimensions & Weight
W 46mm x L 46mm x H 16mm
Packed weight 0.06 kg

Q. How many addressable Zones does each 4-Z have and how far can the sensor be located away from the 4-Z?
A. each 4-Z support 4-Addressable Dry input zones. Any volt free sensor can be connected to any of those inputs. The distance tested using Cat5e as conductor was 300 meter with perfect results.

Q. can 4-Z send trigger commands through bus to activate systems?
A. Yes it can

Q. if the 4-Z is used to convert standard Wall switches to be Automated, can it be used as 2-way for stairs or hotel Bed room example?
A. each Yes it can be utilized perfectly and it support the 2-way switch function and status update
