Description

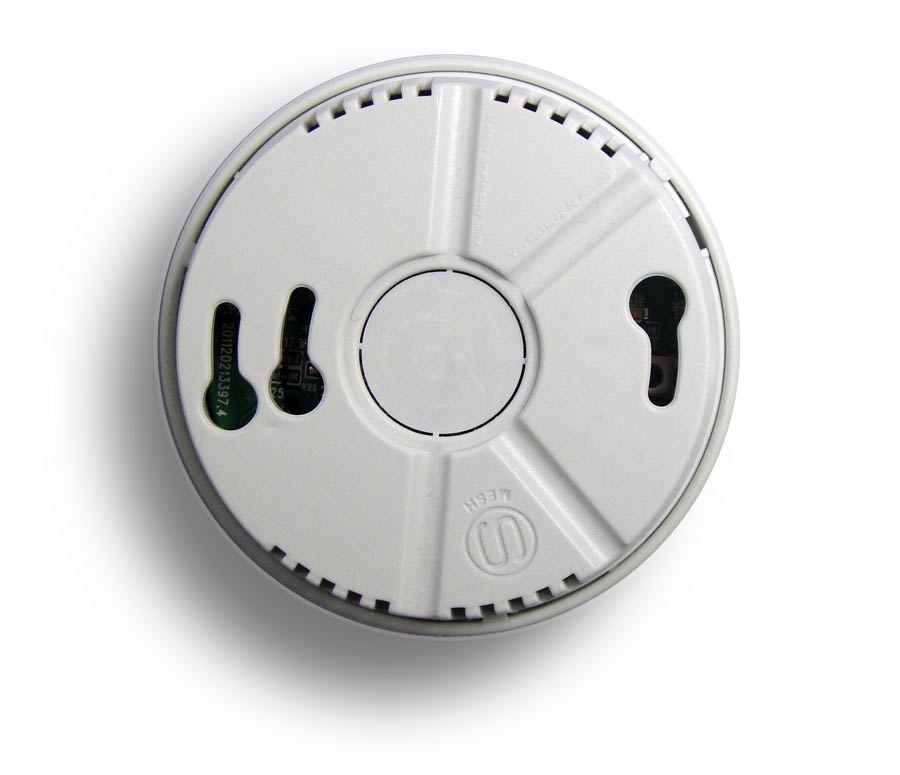

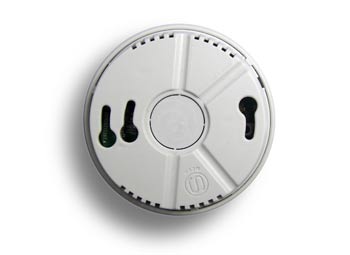

Bus Enabled, Addressable Ceiling Mountable 6in1 Multi-Functional sensor. One device has 6 functions designed perfectly for Automation Industry techno-lifestyle needs. This All-in-One device contains: ( addressable Motion sensor, addressable 2-Zone Dry contact inputs one is for Safety, and one is for Security to connect to the room window sensor and smoke detector or any other sensor, save the wiring and programming time, it has 32 Logic lines (if, then, and or, nand, nor), and it support Burglar Security Code input checking, arming and disarming, it has Built in Temperature Sensor that can be paired to HVAC2 Module, and for other reading needs)
**Added function:
Easy S-BUS Connectors, Temperature Sensor, and mini USB firmware upgrade port, & Advanced mechanical design and size to fit ceiling boxes twist in.
Control Compatibility:
• Security
• Safety
• Maintenance
• Health
• Automation
• HVAC
Specification
Inputs
2-Dry Inputs (Volt Free) +
1 PIR 10mX110 degrees ,
1 Temperature sensor inbuilt.
NO/NC
Internal Assignment enabled
Controls
1 x Advanced RS485 S-BUS serial port links (screw link)
32 logic lines & 250 prog. Flags
Burglar security and Home safety Zone control function.
Upgrade IO
1 x mini USB port (to connect to special programming board)
Dimensions & Weight
W 85mm x L 85mm x H 39mm
Packed weight 0.14 kg
Q. What is the Range of Motion detection and IR range for every sensor?
A. a motion Detection range of 10 meters diameter (5 in every direction from sensor center) if installed at height of 3m. and IR transmission Range of 12 meter diameter (6 in every direction).
Q. How many programmable logic lines available in every multi-function sensor?
A. there are 32 Logic lines and 250 programmable flags. (Each sensor is considered a complete Zone Automation control commander; it would have been complete system if it has built in Time clock with battery).
Q. which sensors have built-in Temperature couple and what is the use of this?
A. both 9in1 and 6in1 sensors have built-in Thermal couple for temperature reading. It can be used to Pair with HVAC2, or to act as temperature reading source for SW, Touch screen, or DDP. It can also be used to average the temperature of several reading devices or points in the same space. Best application for it is the use in one zone where only one HVAC supply multi areas, in such case if temperature threshold is reached in the slave zone then AC shall trigger regardless if Main DDP desired or current temperature settings are differently assigned. Priority will be given to the critical zone as per logic command.
Q. How many Dry contact inputs the Multi-sensor Have, and can we put more than one door or window magnetic contact on single zone?
A. each Multi-Sensor have 3 addressable zones, Only 2 of which are assigned for dry Inputs. On each addressable dry input, installer can connect on series as many doors or windows needed, but must understand that either one of them is open then, all will be reported unsecure.
Applications
• Security Applications in connection to: (vibration, UV, magnetic contacts, Panic, Pressure matt, PIR, microwave, Driveway sensors...etc.)
• Safety Applications in connection to: (Gas Leak, Smoke, Pool Guard, Elevator Panic, CO gas, Bathroom Help..etc.)
• Maintenance and Health Applications in connection to: (water Leak detector, water tank low level alert, Filter sensor...etc.)
• Logic Control
• HVAC and energy Saving
