Smart-Bus Dimmer 2ch 6Amp /ch, DIN-Rail Mount (G4) - SB-DIM2c6A-DN
GTIN (UPC-EAN): 0610696253866


Smart-Bus Dimmer 2ch 6Amp /ch, DIN-Rail Mount (G4) - SB-DIM2c6A-DN - GTIN (UPC-EAN): 0610696253866

Smart-Bus Dimmer 2ch 6Amp /ch, DIN-Rail Mount (G4) - SB-DIM2c6A-DN


DIN-Rail Mount Dimmer 2ch 6A /per ch. with scene controller (Overheat, Overload, Surge Protection) single phase both 220/110 VAC, 50-60Hz (Green operated supplied by 24VAC/30mA) Small and elegant with easy labeling space, output status LED indicator, network health, broadcast address button and Momentary channel button. Can be used in any location that require energy saving, intelligent control such as apartment, Villa, Offices, Restaurant, Hotels or factories. Can be Manually Programmed by any Electrician on site without need for PC.

Load Compatibility:

• Leading edge electronic transformers (Spot/Down Lights++)
• Incandescent lamps
• Track lighting

Connection Port:
Smart-Bus Dimmer 2ch Connection Port


Dimmer Control Modules (Features compared)

Old Smart-BUS

New S-BUS G4

Din Rail and Wall Mountable Installation

Only DIN


S-Connector Technology (No Bus Wiring inside DB Train Line)

Not Possible


Easy to See Network Status LED for Health and Problems for dressed DB

Not Possible


Upgrading without opening the Device

Not Possible

By Mini USB

Ability to Snap Connect/Disconnect Cables

Not Possible

Snap In Connector

Ready with up to 12 Channels on single Module

Not Possible


PCB Electronics Design Complexity



Easy Backup and Restore using Configuration SW

Not Available


Heat Sink, Heat Transfer Surface, Air circulation; and Parts Heat space


Advanced, Double efficiency

Protection for Cable Harness against Heat Sink

Not Possible


Updated Channel Operation status on DLP and SW if Manually Changed



Work on Both BUS and Cloud Technology

Not Possible


Programming and Pairing Manually to DDP, FDP, 6B,4B,3B

Not Possible


well designed Air cooling Vents at Back and front and Side of Module


Advanced, Double efficiency

Big Easy Label Space for Installer labeling

Small, Not Easy

Visible and Wide

Colors Distinguisher Face Plates (to know which product is which)

Not Available


Genuine Patent and Brand Embedded into all Parts and Plastics

Not Available


Genuine Product Barcode GTIN, and Holographic Label Distinguisher

Not Available


All Other Standard Smart-BUS Advanced Automation Features




80-240V, 50/60Hz Single Phase
power consumption: 20-30mA

2 x dimmed outputs
(leading edge phase control) at
6A each output channel

Maximum Total Load
10A recommended total load

Control IO
3 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)

Upgrade IO
1 x mini USB port (to connect to
special programming board)

User Controls
• front panel override switches,
Includes ON/OFF/AUTO override
switch for each channel
• LED status indicator/channel
• Diagnostic LED+ BROADCAST

• Manual Ch. Pairing Programming
Each Channel to a Button
on Wall Panels (e.g. DDP, 6B)
• Advanced Software Configuration
& Programming

CE Mark Low Voltage

Internal Protection
• Over Heat Protection
• Over Load Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

Preset and Scenes
2X12 Built in Scenes, and 2X4
Sequence Modes and Logics.

• 35mm DIN-Rail Mount Ready
• Wall Mount Ready (8P)

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where

Supply Terminals
Line, 3X Neutral. 2 x 2.5mm2
or 1 x 4mm2 max conductor size
Output Terminals
COM. 1X OUT for each channel
1 x 4mm2 max conductor size

Operating Environment
-10ē to 45ēC ambient temperature
10% to 93% RH

Enclosure & Size
Polycarbonate, DIN-rail (8 Unit)

Dimensions & Weight
W 91mm x L 145mm x H 75mm
Packed weight 0.6kg

Q. Does dimming affect halogen lamp life?
A. No, not at all. Dimming increases incandescent lamp life. Halogen lamps are incandescent lamps with a tungsten filament. Smart-Bus's pilot test data suggests that halogen lamps will have an expected lamp life similar to other incandescent lamps when dimmed. As an example, 1 type of halogen lamp with a rated life of 2,000 hrs dimmed to 80 V has a life extension of at least 5 times.

Q. Why do dimmers get warm, and is this safe?
A. The technical explanation: During normal operation, solid-state dimmers generate heat. A solid-state dimmer is roughly 98% efficient – 2% of the power is dissipated as heat, which causes the dimmer to feel warm to the touch. The closer a dimmer is run to full output and the higher the load (watts) on the dimmer, the warmer it will feel.
This is perfectly normal and safe. Smart-Bus dimmers are designed to the strictest UL safety standard.

Q. How Much Load can, Din Rail, Dimmer take?
A. Smart-Labs Ž has designed the (G4) dimmers to take a Maximum Load of 12Amps, however it is always advisable to de-Rate and calculate maximum load at 10Amps only as per Specification sheet.

Q. What happen if we put big power supply more than 2A/24VDC ( Note: In Clipsal Schneider case, we damage network if we do that.) so will that also similarly damage the dimmers in smart bus case?
A. No, there is no harm at all, the S.BUS is designed with high flexibility and good amount of protection. You can add big power supply as you like, in example 30A/24VDC for even bigger Amp. to one dimmer or relay with only one switch.. the s.bus will still function perfectly. Smart-BUS is designed way differently compared to other manufacturers.

Q. What is the maximum voltage that the smartbus can take before it burns its chip?

A. 45 VDC max

Q. What happen to the bus chip if all the wires of the bus Are shorted?
A. Mostly nothing because s-bus is protected, and once the short circuit issue is resolved then sbus should function normally.

Q. Can we use electric cables instead of data cables to communicate between bus in case we have no data cables?
A. Yes, you can use any conductor cable which is brass, that should work fine.

Q. What fuses are used to protect against overloading inside the Smart-BUS?
A. sBUS uses slow burning fuses to protect the Modules. Usually 4A fuse is used with every channel of 2A, while 6Amp fuse is used with every channel rated 3A, and 10 Amp fuse is used for every channel rated as 6Amp. (in case you overload and burn the fuse, request pro technician to Simply replace it for you)

Q. How long the Smart-BUS wire can be?
A. we tested the BUS as far AS 1200 meters of distance and found operational. (Bigger Conductor is needed for Power in such case)

Q. Does every S-BUS Dimmer have scenes built into the module, or we have to buy scene controller?
A. No need to buy any extra modules, each dimmer has scene controller function built in. Smart-Group always adds all needed features as possible inside same module to help save money, time, space and environment.

Q. what if we have 2 channels installed on the 6A dimmer, but one of them is only 2Amps, while the other one is 7.5Amps, will that burn the dimmer?
A. As long as the total load is below 10Amps collectively, the Dimmer will remain functional. Meaning that 7.5Amp Load can be handled without any issue since the other load is below 2Amp. making both loads total 9.5Amp that is within permissible range.

Q. Do we have to de-rate because of Spark effect when we design electrical digial Relays control panels DRP or Dimmer Panels DDP?
A. No. you do not have to de-rate. We have done this for you already when we have designed the Relays and Dimmers at our R&D labs. (To be on safer side, all you need is to accurately calculate the load based on your country Electrical Voltage and constant fluctuations if any)

Q. How many dimmers can be connected with the Train connecter that is built in the dimmer Module?
A. from experiment, we had no limitation; you can connect as many as you can inside the DP on Single DIN-rail. In case you have multiple Din-Rails, please bridge using side S-BUS Connector.

Q. what happens if communication BUS voltage drops below 24VDC, and what happen if it exceed that? (Question case example: in Dynalite case, the running BUS voltage is 12VDC, but we usually lose data communication if it drops below 10VDC, and network cards burn in case voltage is more than 15VDC)
A. In Smart-BUS case, the recommended working voltage is 24VDC, there is tolerance between 10-32 volts with perfect operation. If voltage drop below 8VDC then communication might be lost, and if voltage exceeds 45VDC then also S-BUS network ports will burn. When we designed the smartHome-BUS, we made it as bullet proof as possible with maximum voltage change flexibility imaginable at any normal case.

Q. What is radio frequency interference (RFI)?
A. RFI is a buzzing noise that may occur in some audio and radio equipment when solid-state dimmers are used nearby. Although every Smart-Bus dimmer contains a filter to suppress RFI, additional filtering may be required in some applications. Typical examples of RFI-sensitive equipment are AM radios, stereo sound systems, broadcasting equipment, intercom systems, public address systems, and wireless telephones.

Q. Doesn't turning the lights on and off so quickly decrease bulb life?
A. No. Switching the bulb does not decrease bulb life; heat decreases bulb life. By reducing heat, bulb life is increased.

Electrical Diagram

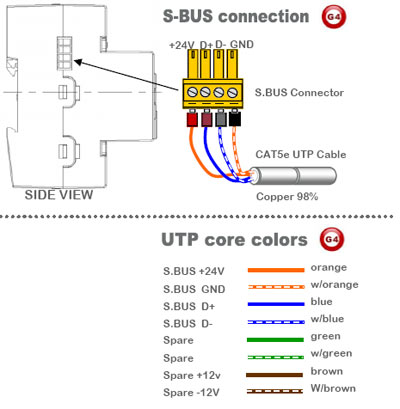

S-bus Connection
