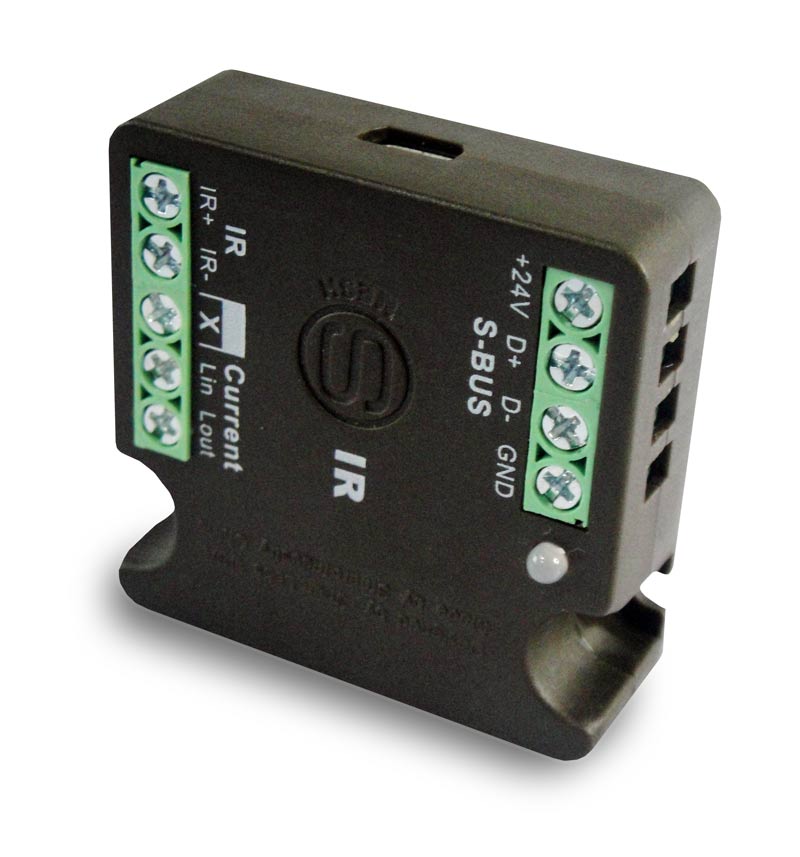

Smart-Bus IR Emitter with Current Sensor (G4) - SB-IR-UN
GTIN (UPC-EAN): 0610696253774
Smart-Bus IR Emitter with Current Sensor (G4) - SB-IR-UN
Description
Universal Infra Red code Emitter with built in 2A current sensor and cyclic function. The innovative current sensor Idea check if the electronic equipments is running or is turned off to prevent sending Power Toggling IR code as example. Each module Can save up to 255 IR codes then can be used for Home theater equipment, HVAC, Media
systems at living rooms, Curtains control, and several other devices.
**Added function: Bigger screw terminals, Broadcast button, and mini USB firmware upgrade port.
Control Compatibility:
• all standard universal IR enabled equipment (that can be controlled using IR signals)
Connection Port:
WHY G4 (GENERATION-4) IS BETTER? 4Z, AND IR EMITTER (W/CURRENT SENSOR)
4Z/IR Modules (Features compared) |
Old Smart-BUS |
New S-BUS G4 |
Upgrading without opening the Device |
Not Possible |
By Mini USB |
Broadcast Button for addressing while Networked |
Not Possible |
Available |
Big Easy Screw Terminals to connect Cables |
Too Small |
Bigger Size |
PCB Electronics Design Complexity |
Random |
Organized |
Updated Channel Operation status on DLP and SW if Manually Changed with 2way switch function |
Not Available |
Available |
Easy Twist to Open Design |
Not Possible |
Available |
Easy Backup and Restore using Configuration SW |
Not Available |
Available |
Work on Both BUS and Cloud Technology |
Not Possible |
Possible |
Genuine Patent and Brand Embedded into all Parts and Plastics |
Not Available |
Available |
Genuine Product Barcode GTIN, and Holographic Label Distinguisher |
Not Available |
Available |
All Other Standard Smart-BUS Advanced Automation Features |
Included |
Included |
TECHNICAL DATA:
Universal Coded Current Sensor Macro Function Control IO Upgrade IO User Controls Programming Compliance |
Operation Protection Applications IR code learning SBUS DC Supply Installation Operating Environment Enclosure material Dimensions & Weight |
Q. How many IR codes Can the IR emitter save?
A. 255
Q. up to what range can IR emitter send IR signal?
A. up to 6 meters
Q. What is the Load designed to be read accurately by the current sensor that is built-in the IR emitter?
A. up to 2Amp the reading is accurate. Usually all electronics like TV, DVD ++ are below this thresh hold.
Q. Can the IR emitter perform Macro functions?
A. if you have logic module installed, then any IR-emitter can perform the Macro function.
Softwares and Firmwares
Applications
The IR Emitter has successfully proved its ability in control of many 3rd party IR controlled systems like: HVAC, Curtains, Drapes, TV's, DVD's, Set Top Sat Boxes, Stereo equipment, AV receivers, Projectors...etc.
Design Variants
2D BARCODE:
GTIN (UPC-EAN):
