Smart-Bus IR Emitter with Macro & Current Sensor (G4) - SB-IRM-UN
GTIN (UPC-EAN): 0610696254993
Smart-Bus IR Emitter with Macro & Current Sensor (G4) - SB-IRM-UN
Description
Built in 10 Macros, each can sequence up to 50 IR codes with different Time delay between IR Codes to transmit between 0 seconds up to 30 minutes. Universal Infra Red code Emitter with built in dual Range 2A current sensor and Macro cyclic function. The innovative current sensor Idea to check if the up to 2 electronic equipments are running or any is turned off to prevent sending Power Toggling IR code. Each module Can save up to 255 IR codes then can be used for Home theater equipment, Multi Media systems control, IR Remote motorized Curtains Split AC control, and several other IR Controlled devices. Ready trigger Using single on command..

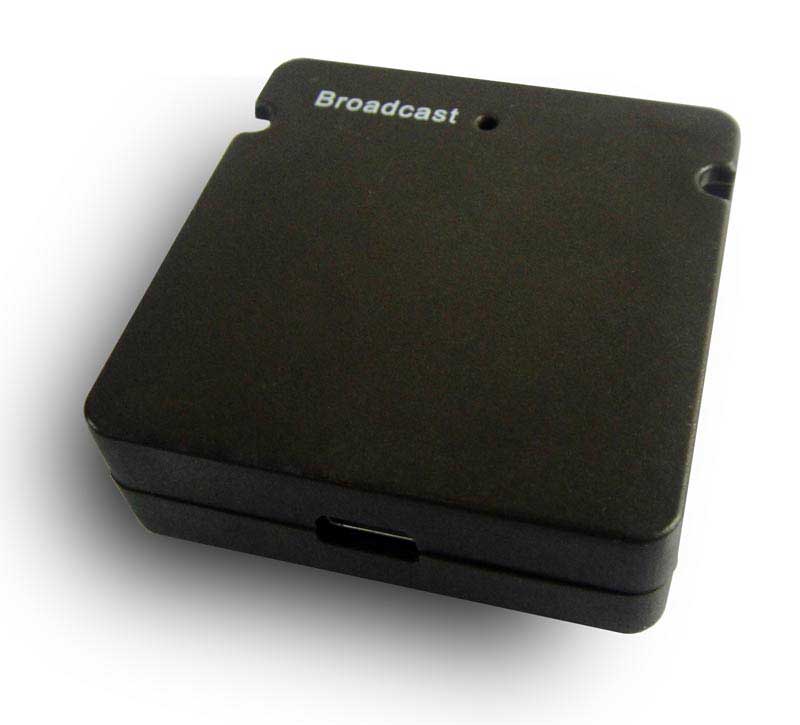

**Added function: Bigger screw terminals, Broadcast button, and mini USB firmware upgrade port.
Control Compatibility:
• all standard universal IR enabled equipment (that can be controlled using IR signals)
Connection Port:
WHY G4 (GENERATION-4) IS BETTER? 4Z, AND IR EMITTER (W/CURRENT SENSOR)
4Z/IR Modules (Features compared) |
Old Smart-BUS |
New S-BUS G4 |
Upgrading without opening the Device |
Not Possible |
By Mini USB |
Broadcast Button for addressing while Networked |
Not Possible |
Available |
Big Easy Screw Terminals to connect Cables |
Too Small |
Bigger Size |
PCB Electronics Design Complexity |
Random |
Organized |
Updated Channel Operation status on DLP and SW if Manually Changed with 2way switch function |
Not Available |
Available |
Easy Twist to Open Design |
Not Possible |
Available |
Easy Backup and Restore using Configuration SW |
Not Available |
Available |
Work on Both BUS and Cloud Technology |
Not Possible |
Possible |
Genuine Patent and Brand Embedded into all Parts and Plastics |
Not Available |
Available |
Genuine Product Barcode GTIN, and Holographic Label Distinguisher |
Not Available |
Available |
All Other Standard Smart-BUS Advanced Automation Features |
Included |
Included |
TECHNICAL DATA:
Macro Function Universal Coded Current Sensor Control IO Upgrade User Controls Programming Compliance |
Operation Protection Applications IR code learning SBUS DC Supply Installation Operating Environment Enclosure material Dimensions & Weight |
Q. How many IR codes Can the IR emitter save?
A. 255
Q. up to what range can IR emitter send IR signal?
A. up to 6 meters
Q. What is the Load designed to be read accurately by the current sensor that is built-in the IR emitter?
A. up to 2Amp the reading is accurate. Usually all electronics like TV, DVD ++ are below this thresh hold.
Q. Can the IR emitter perform Macro functions?
A. if you have logic module installed, then any IR-emitter can perform the Macro function.
Documents
- Datasheet IR Macro
- Configuration Manual for SMART IR Serials
- Installation Manual
- Programming Manual
- Control Split AC from DDP using IR Emitter / 9in1 Sensor
Softwares and Firmwares
- Smart Cloud Software Versions
- IR Macro Firmware
- Upgrade Kit Driver (Win 7 & XP)
- JTAG Firmware Upgrade
Applications
The IR Emitter has successfully proved its ability in control of many 3rd party IR controlled systems like: HVAC, Curtains, Drapes, TV's, DVD's, Set Top Sat Boxes, Stereo equipment, AV receivers, Projectors...etc.
