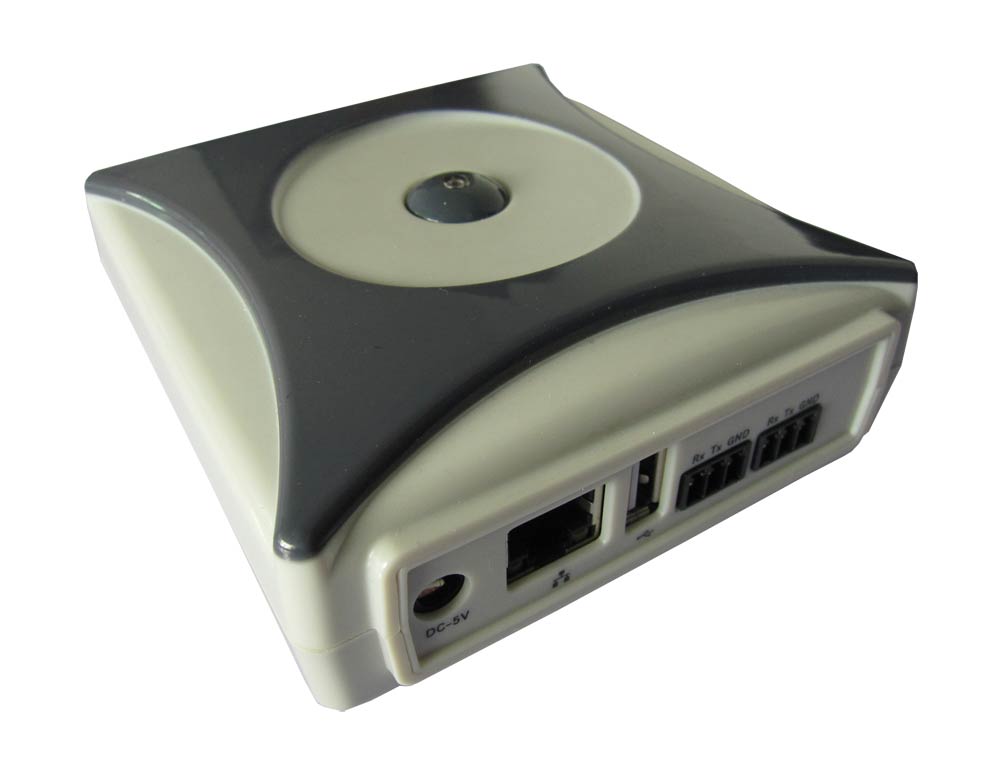

SMART-GATE (Web-Host) - SB-Sgate-FL
GTIN (UPC-EAN): 0610696254665
-0610696254665-big.jpg "SMART-GATE (Web-Host) - SB-Sgate-FL - GTIN (UPC-EAN): 0610696254665")
SMART-GATE (Web-Host) - SB-SGATE-UN
Smart Gate is your intelligent Home Gateway device interfacing to the G4 SBUS controllers and allow you to control your devices in your home from your Laptop, Mobile or any device having a browser. You can chat with the Smart Gateway to know the status of your home devices. The Smart Gateway will keep track of your calendar and inform you of your upcoming events on your calendar.
Control Compatibility:
• Lighting
• Climate
• Music
• Curtains
• Moods
• Media
• Security
• Service
• Drapes
• Pumps
• Gates
Specifications
| Parts | Description | |
| Processor | AM1802 from TI | 300 MHz |
| Flash Memory | 4 MB serial Flash | Expandable upto 16MB |
| SDRAM | 8MB SDRAM | Expandable upto 32MB |
| Bluetooth | 1 | Bluetooth 2.0., Module with stack inbuild |
| RS-232 port | 2 | Each with 3 signals: COM GRD, Tx, Rx Baud Rate: MIN (<=4800), MAX (>=115200) Terminal type connector |
| Ethernet | one 10/100 Ethernet | |
| Zigbee controller | Zigbee Module with stack inbuild | |
| SD-Card interface | 1 | Micro -SD |
| USB interface | 1 high-speed USB 2.0 host/OTG | |
| LED | 4 | GREEN – Power BLUE - bluetooth status GREEN – Zigbee GREEN/AMBER (Dual color): User Defined |
Features
• ZigBee (ZigBee Pro) Home Automation Support (includes Physical interface)
• Ethernet Support (includes Physical interface)
• Bluetooth 2.0 (includes Physical interface)
• G-4 Smart-Bus support (library interface) over UDP
• Secured Communication over SSL
• Gateway Image upgrade locally through USB
• SD Card interface for log storage
• Back up and Restore all the S-Bus config data
• DDNS Support for remote access of gateway
• Integrated Web server
• Mobile phone Calendar Synchronization with gateway with support for 4 phones
• Chat based support to control home devices
• Support for Community Features - Provision to select the service provider such as Carpenter,
Plumber, Electrician etc.. and Send a service request to the provider via email
• Web Whether feed from 4 different news providers(Configurable)
• Photo viewer functionality
• Multiple Access Control – Admin User, Power User and Normal User
• Browsers Supported – IE8 , Safari 4, FireFox
Design Variants
