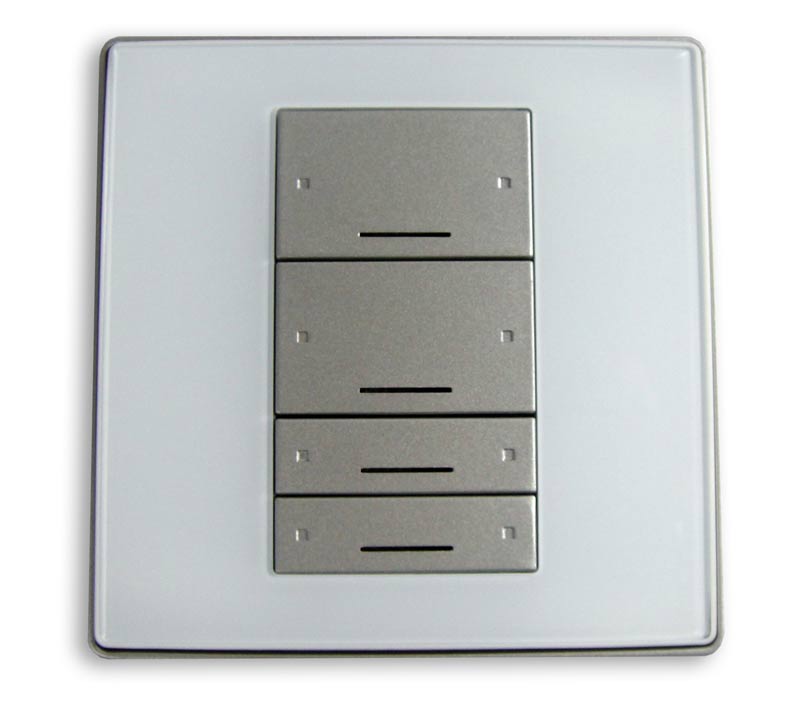

Smart-Bus 4 Button Switch Wall Panel - SB-4BS-EU
GTIN (UPC-EAN): 0610696254276




Smart-Bus 4 Button Switch Wall Panel - SB-4BS-EU - GTIN (UPC-EAN): 0610696254276

Smart-Bus 4 Button Switch Wall Panel - SB-4BS-EU

Elegant and easy to use wall panel that is soft programmed to enable control of lights, curtains, service++ the 4 Button switch has easy fascia color and material changing flexibility to help match any interiors. It has screw less mounting mechanism, security lock, easy upgrade mini-USB, re-locatable IR receiver probe, LED backlit buttons.

**Added function: Bigger buttons, Elegant aluminum surround and buttons, mini USB firmware upgrade port, easy connectors. Security lock screw to prevent vandalism, two sided button operation.

Control Compatibility:

• Lighting
• Music
• Curtains
• Moods
• Security
• Service
• Color
• Drapes
• Pumps
• Gates


WHY G4 (GENERATION-4) IS BETTER? DDP, FDP, 6B, 4B, 3B



Switches and wall panels (Features compared)

Old Smart-BUS

New S-BUS G4

Buttons and Surround Finish Material Improvement

Plastic

Aluminum

Glass Material Improvement

Thick & Bulky

I Phone Quality 0.8mm Glass

Back Module Size

Do not Fit all Countries

Fits all countries

Upgrading without opening the Device

Not Possible

By Mini USB

Ability to Snap Connect/Disconnect Cables

Not Possible

Snap In Connector

Ability to Locate IR receiver nearer to user location

Not Possible

Flexible with Snap in Connector

PCB Electronics Design Complexity

2 Complex Boards

Single simple Board

User Graphics Interface

Standard

Improved Icons

Integration to Z-Audio with auto update

Manual

Advanced Auto

Fixed Display Panel (FDP)

Not Available

Available

Easy Backup and Restore using Configuration SW

Not Available

Available

Work on Both BUS and Cloud Technology

Not Possible

Possible

Buttons Size and Workability of Soft switches (1-6 Gang)

Smaller, single side operation

Wider and Bigger with Both sides Operation

Panels Security not to be simple to remove from wall

Not Secure

Secured by Clamps, Magnets, and screw Locks

Metal Plate Twist and Screw Installation Simplicity

Not Possible

Possible

Design Standards

Asian Curved Design

Modern European Touch

Anti static Electricity Grounding and discharge

Not Part of Original Design

Embedded and Implemented in Design

Programming and Pairing Manually to Lighting, Dimming, HVAC, and Music

Not Possible

Easy

Flexible Fascia changing (many varieties)

Difficult, Very Thick

Easy

All Other Standard Smart-BUS Advanced Automation Features

Included

Included



TECHNICAL DATA:

Added features
Lockable keys/ buttons
Lockable IR receiver
Changeable fascia colors
LED backlit buttons and LCD
Reloadable IR receiver 15m
Screw less mounting
Easy sBUS connector tech.

Control Applications
lighting, security arming, motorized
shades, moods and
scenes, on/off music, fountains,
irrigation, gates, LED
color, service request, panic,
lifts, fountains, gates..etc.

User Controls
• user control buttons
• Diagnostics + BROADCAST

Button behavior
Single click (on/Off toggle)
Double click (mood/Macro)
Keep press (dim/ramp)

Programming
• Manual Pairing to Lighting,
• Advanced Software Configuration
& Programming

Compliance
CE Mark EMC

Total Gangs
3 gangs

Control IO
1 x Advanced RS485 S-BUS
serial port links (both train &
screw link types)

Upgrade IO
1 x mini USB port (to connect to
special programming board)

Operation Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where
Power consumption: 25mA

Installation
• wall Mount metal frame twist
• Magnetic screw less mounting
• Advanced security locking
• Easy sBUS connector tech.

Operating Environment
0ē to 45ēC ambient temperature
20% to 93% RH

Enclosure material
Aluminum, Glass, and poly

Dimensions & Weight
W85mm x L85mm x H12mm x
D8mm. Backed weight 0.2 kg

Q & A



Smart-Bus 4 Button Switch Wall Panel - SB-4BS-EU - GTIN (UPC-EAN): 0610696254276


Smart-Bus 4 Button Switch Wall Panel - SB-4BS-EU - GTIN (UPC-EAN): 0610696254276

Applications

• Homes
• Hotels
• Restaurants
• Luxury Boats
• Schools
• Factories
• Prayer Halls
• Commercial centers

Design Variants
