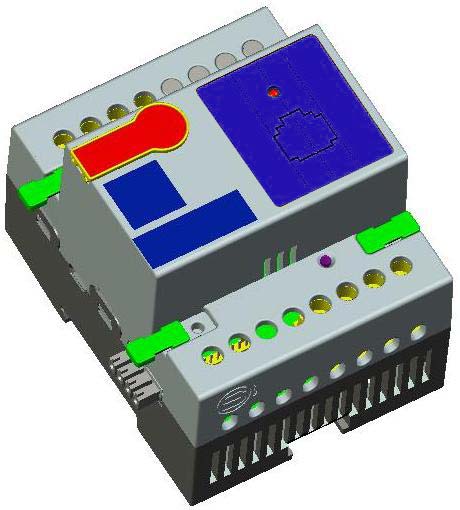

Smart-Bus Hybrid Integration Link with IP - SB-RSIP-DN

Description

DIN-Rail Mount, PC/IP Interface and 3rd Party Integration RS-232 & RS-485. This Module is multi Purpose, it can be used for programming S.BUS, and a bridge between computer Smart-BUS network, can also be used as network bridge in the big projects with thousands of devices. It is the Touch Screen to SBUS bridge. Same device is used
for 3rd Party Integration. Can send more than 1980 ASCII and/or Hexadecimal Command with 50 ASCII Character Message Length for more flexibility. 2 way communication that can receive up to 99 ASCII,HEX string commands to do up to 20 different commands for each message received Fixed ASCII S-BUS Protocol with Send Command Delay option Adjustable baud rate

**Added function: Improved String Length.

3rd Party Compatibility:

• Lighting
• DVD's
• Media
• Curtains
• Security
• Music
• Lifts
• Projector
• Access
• Fire
• Weather
• HVAC
• TV
• RFID
• W-BUS

Connection Port:

Q: How To Upgrade RSIP?
A: Watch http://www.youtube.com/watch?v=Pc4O6mvyjcs&feature=plcp

Q: How to install 3 RSIP232 units in a building and control each individually? And is there a way it can receive the correct feedback from each unit individually without all of them responding at the same time/port address?
A: Here is the connection diagram with the configuration settings of each devices:

The Serial Port connection for RSIP module

GND->GND
T-> R
R->T

• Datasheet (RSIP)
• Installation Manual
• Upgrading Firmware Manual

Softwares and Firmwares

• Smart Cloud Software Versions
• Smart G4 RS232ip Nov 01 2012 V0.03
• Smart G4 RS232ip Feb 13 2012 V1.34
• Upgrade Kit Driver (Win 7 & XP)
• JTAG Firmware Upgrade
• SmartBus G4 Firmware Upgrade (March 8, 2012)

Applications

• Apartment, Villa, Offices, Restaurant, Hotels or factories
