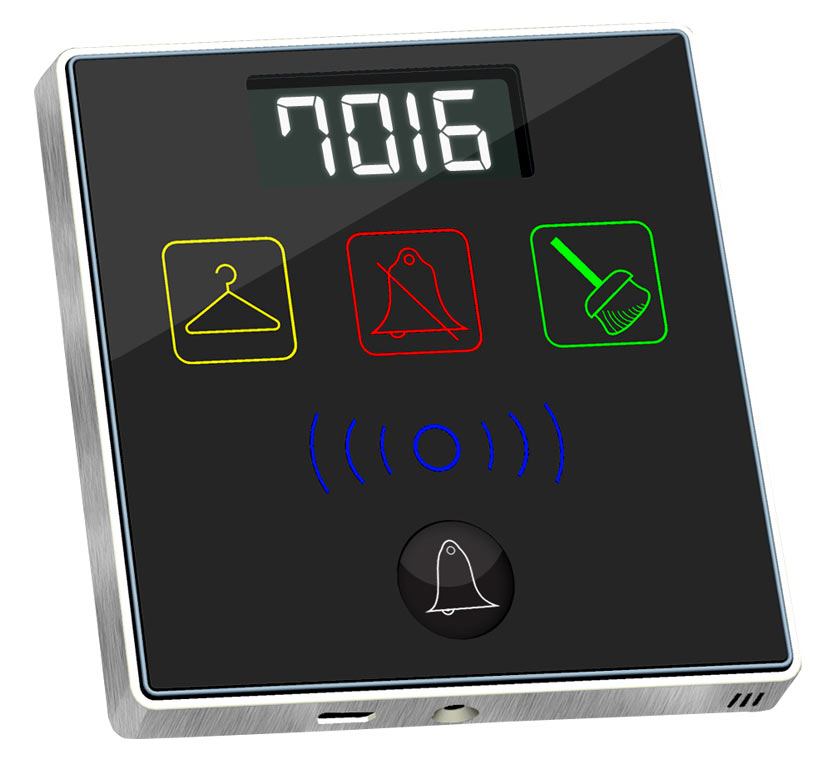

Smart-Bus Hotel Bell with Access Control (G4) - SB-3SBXS-WL
GTIN(UPC-EAN): 0610696254337

Description

The module is a part of the Smart Hotel GRMS control system, built in Mifare Proximity Card Reader, Large-capacity flash memory (save up to one year open door log), Room service state indication (Back Lit), Door Relay for Lock Control, Logic Control Module & Time Clock, Buzzer, Online update. Bus Enabled Network. Secure, Screw less Fixing Magnet Technology, Include 1Z for Door Magnet, No Need for Special Back box (Uses standard3x3)

WHY G4 (GENERATION-4) IS BETTER? HOTEL DOOR BELL, SERVICE AND ENERGY CARD

Hotel wall panels (Features compared)	Old Smart-BUS	New S-BUS G4
Buttons and Surround Finish Material Improvement	Plastic	Aluminum
Glass Material Improvement	Thick & Bulky	I Phone Quality 0.8mm Glass
Back Module Size	Need Special Back box	Fits all countries
Upgrading without opening the Device	Not Possible	By Mini USB
Ability to Snap Connect/Disconnect Cables	Not Possible	Snap In Connector
Usage difficulty	Difficult Touch	Easy Push Buttons
PCB Electronics Design Complexity	Complex	Compact
Service call is Integrated within same panel, no need for extra Device like old 3G or 6G	Expensive	Cheaper
Works both Online and Offline with Door Access Memory Log and Verification	Not Possible	Possible
Built in Logic and Timer	Not Available	Available
Easy Backup and Restore using Configuration SW	Not Available	Available
Work on Both BUS and Cloud Technology	Not Possible	Possible
Monitor House Keeping activity and reporting	Not Possible	Possible
Panels Security not to be simple to remove from wall	Not Secure	Secured by Clamps, Magnets, and screw Locks
Metal Plate Twist and Screw Installation Simplicity	Not Possible	Possible
Design Standards	Asian Curved Design	Modern European Touch
Programming and Pairing Manually to Service Door Panel	Not Possible	Easy
Flexible Fascia changing (many varieties)	Difficult, Very Thick	Easy
All Other Standard Smart-BUS Advanced Automation Features	Included	Included

TECHNICAL DATA:

Mifare Proximity Card Reader Compatibility
• Mifare s50 Card
• Mifare s70 Card

Extra features
• Card authority level can be set (the guest card & hotel management card)
• Password management
• Can store the access log number up to 50000
• Access log can be derived, deleted by SBUS
• Warning when the door long time is open state

Control IO
• 1 x Advanced RS485 S-BUS serial port links (train types)
• 1 x 0.5A Relay for Lock Control
• 1 x Dry Node for connect with door magnet (Enable NC/NO)
• 1 x Dry Node for general purpose
• 1 x Buzzer

Upgrade IO
1 x mini USB port (to connect to special programming board)

User Controls
• Diagnostic LED+ BROADCAST

Compliance
CE Mark EMC
ROHs
UL Listed Relays Inside

Operation Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection

SBUS DC Supply
24VDC with flexible tolerance
between 8-32VDC. Flexible
ability to add power supply as
to be needed any where
Power consumption: max 30mA

Programming
• Advanced Software Configuration & Programming

Installation
• wall Mount metal frame twist
• Magnetic screw less mounting
• Advanced security locking
• Easy sBUS connector tech.

Operating Environment
0º to 45ºC ambient temperature
20% to 93% RH

Enclosure material
Aluminum, Glass, and poly

Dimensions & Weight
L85mm x W85mm x H19.7mm; weight:0.12Kg
